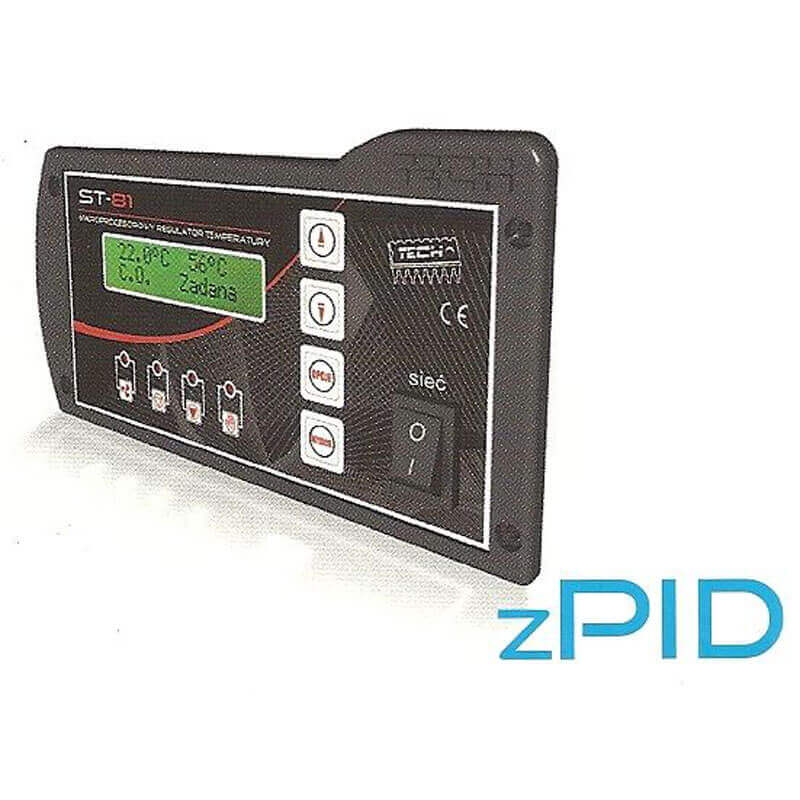

Functions performed by the controller:
- Automatic control of the exhaust fan
- CH pump control
- DHW pump control
- zPID software
Controller’s equipment:
- LCD display
- CH temperature sensor
- DHW temperature sensor
- Flue gas outlet temperature sensor
- Thermal protection
- A panel casing for the boiler’s installation or in a metal casing
Specification | Unit | |
Power supply | V | 230V/50Hz +/-10% |
Maximum power consumption | W | 5 |
Ambient temperature | °C | 5?50 |
CH pump max. output load | A | |
Fan output load | A | 0,6 |
Measurement accuracy | °C | |
Temperature adjustment range | °C | 45?80 |
Sensor thermal resistance | °C | -25?90 |
Fuse | A | 2 x 3,15 |
Temperature measurement range | °C | 0?90 |
Pumps max. output load | A | 0,5 |
Flue gas sensor thermal resistance | °C | 30?480 |
